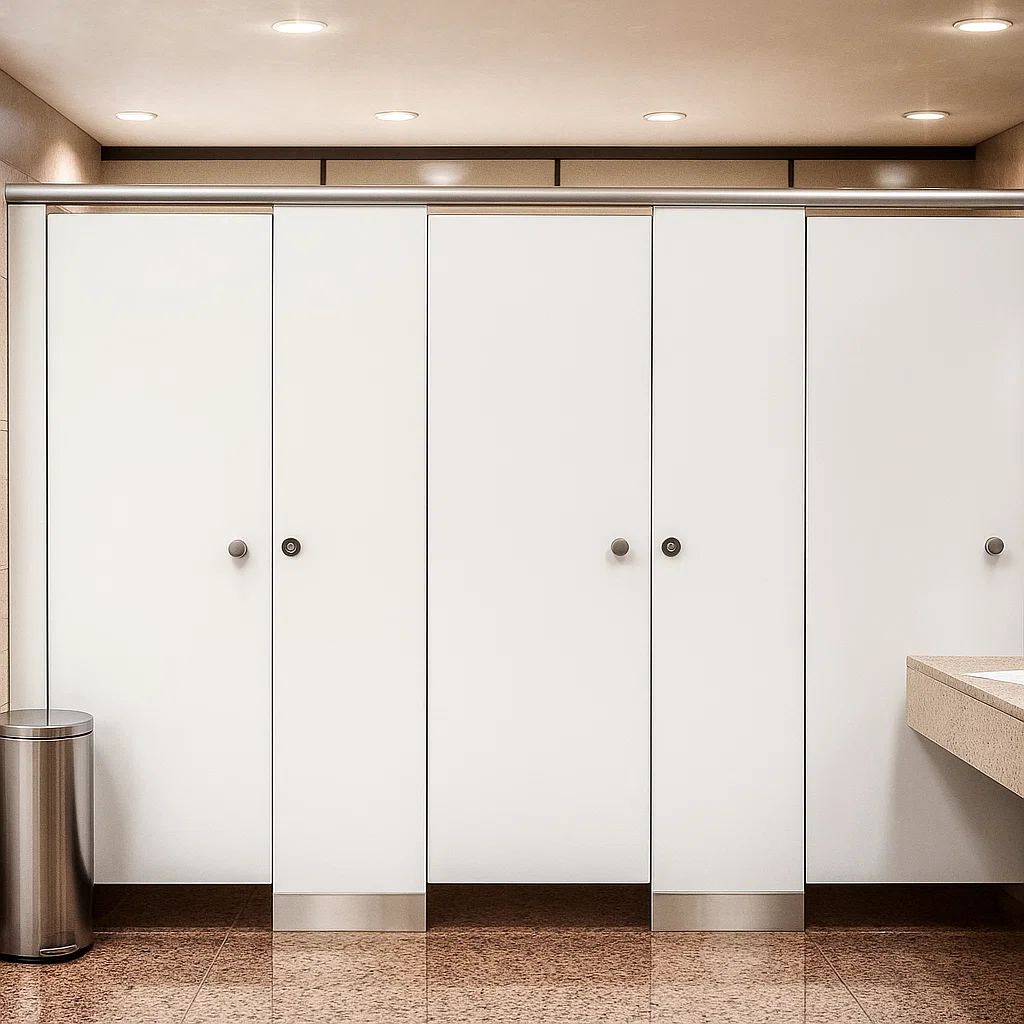

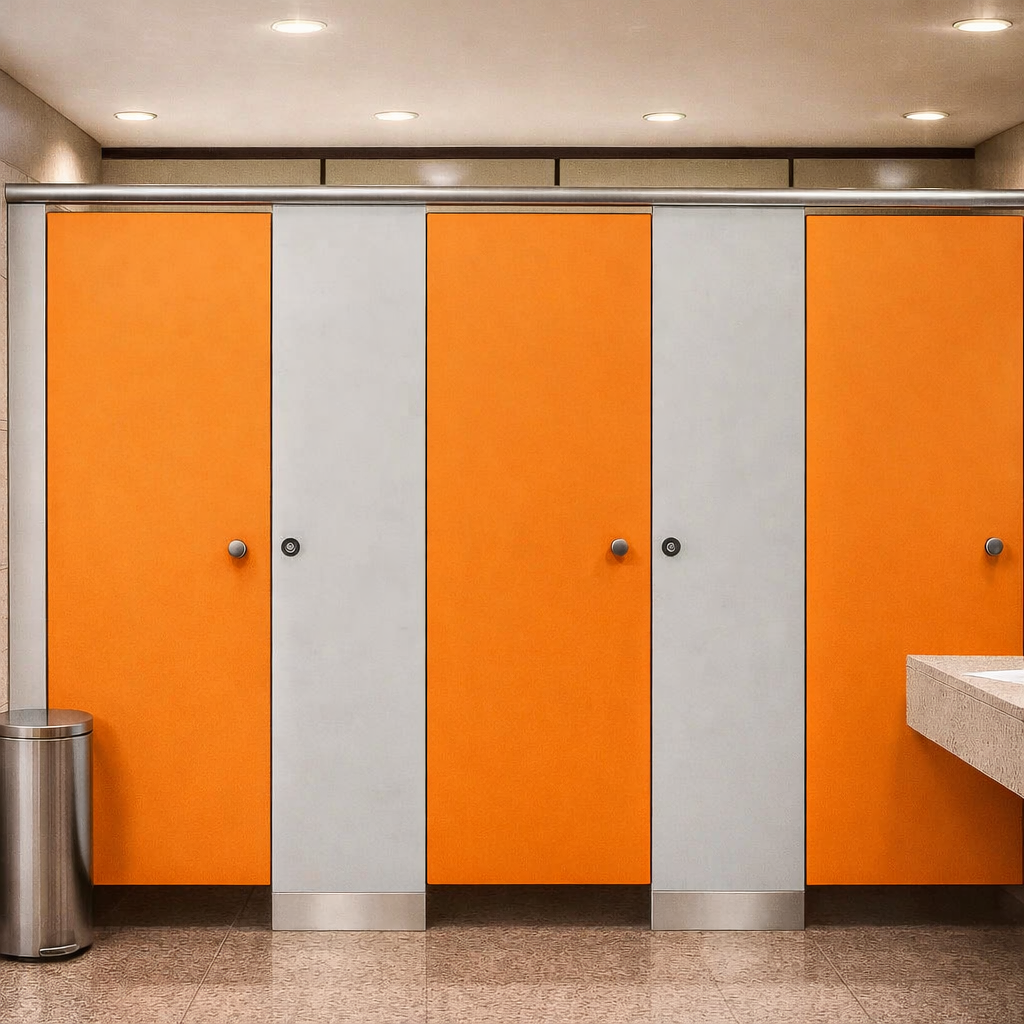

Maxi PRO Series Cubicle

The Maxi PRO series cubicle structure is designed to offer the best privacy and comfort for any restroom. It features an adjustable aluminum shoe box securely anchored to the floor and can easily accommodate both mid and end pilasters, making it a sturdy and flexible option.

The shoe box is attached to the floor with nylon plugs and stainless-steel screws, ensuring maximum stability. The extruded anodized aluminum top rail keeps all pilasters aligned, maintaining a sleek and uniform look throughout.

Aluminum U-channels connect the intermediate panels (partitions) to the mid-pilaster and back wall, creating a strong and solid framework for the cubicle.

Each door is mounted on a mid/end pilaster with three hinges and provides a floor clearance of 100 mm. For added convenience, the door comes with a coat hook and door knob.

A privacy thumb-turn and door stopper channel are installed on the mid/end pilaster at the open end of the door. The door can be opened from the inside or outside and fixed on either the left or right side.

Trust Cubicle Xpertz and the Maxi PRO series cubicle structure to deliver the privacy, comfort, and durability your restroom users need.

Maxi Pro Dimensions

Standard Dimensions	Regular (mm)	Specially Abled (mm)
Height of the entire cubicle	2025	2055
Depth of the cubicle	1550	1550
Pilaster height	1830	1840
Pilaster width	150 / 300	150 / 300
Height of the door	1815	1815
Width of the door	600	900
Ground clearance	100	100
HPL Thickness	12	12

Special Features

• Durable Aluminium Shoe Box with a high-quality powder-coated finish
• Naturally Anodized Aluminium for added strength and protection
• Top Rail Design for better stability and cost efficiency
• Stainless Steel Accessories including adjustable feet, coat hooks, lock sets, latch indicators, and hinges
• Designed to enhance functionality and provide extra convenience
• Offered by Cubicle Xpertz for long-lasting and reliable performance
